DNS-010CX

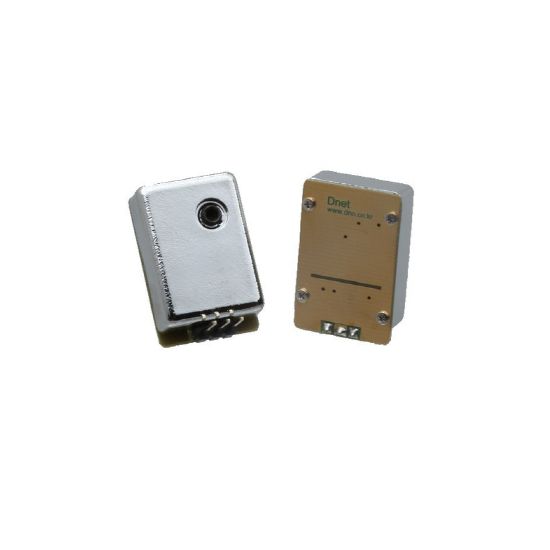

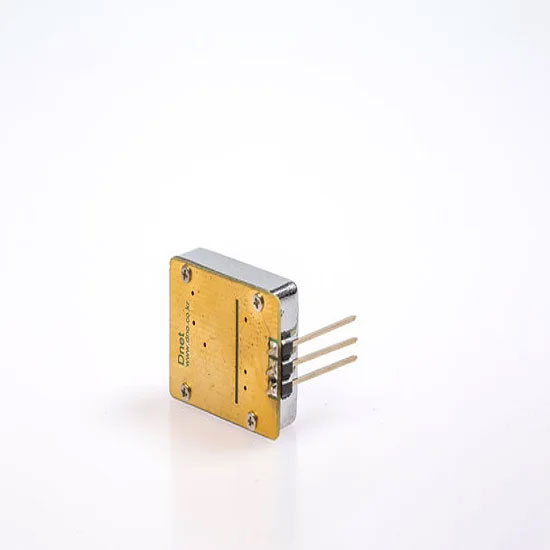

X-Band Radar Motion Sensor Module
  • C-Band Microwave Sensor Module DNS-200(S)
  • Used a RF the Microwave Sensor.
  • Appling the Doppler radar principle.
  • CW Radar, ISM Band
  • Small size.
  • Used Pin Antenna & Amplifier Inclusion.
  • Microwave technology.
  • Low cost & Low Power Consumption.
  • No Amplifier
제품소개

■ Model No.


DNS-010CX

 DNS-020CX

10.525GHz

10.687GHz






■ Specification


(Transmitter)

Frequency

Frequency

Setting Accuracy

Power Output

(Min.)

Operating

Voltage

Operating

Current (CW)

Harmonic

Emissions

10.525GHz. 10.687GHz

3MHz

5dBm EIRP

+5V ± 0.3V.

20mA~25mA typical

< -30dBm



(Receiver)

Sensitivity (10dB S/N ratio) in 3Hz to 80Hz bandwidth

Noise in 3Hz to 80Hz

bandwidth

Antenna Gain

E Plane 3dB Beam width

H Plane 3dB Beam width

TDB dBm

TDB micro V

8dBi

50°

 6



(Module Characteristics)

Operating

Temperature Range

Storage

Temperature Range

Detection Range

Weight

Size(mm,+/-0.2)

-15°C to +55°C

-30°C to +70°C

7M ~ 8M(Wall Type). 5M Diameter (Ceiling Type).

6 grams.

28.2 * 18.7 * 10
