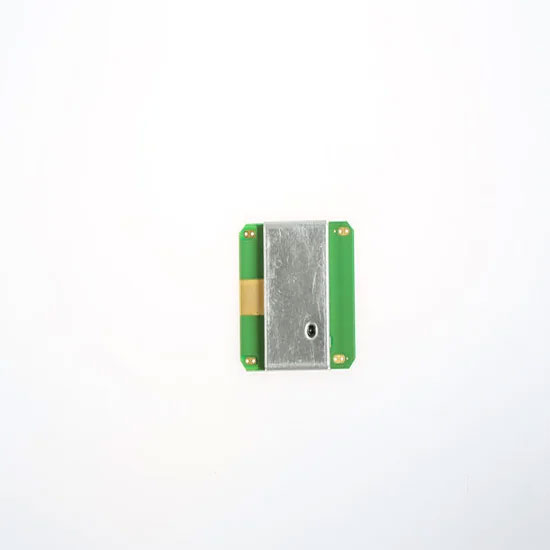

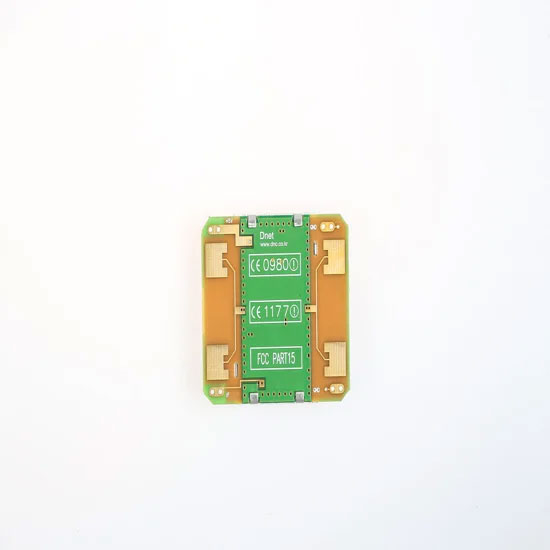

DNS-010V
X-Band Radar Sensor Module
- X-Band Radar Sensor Module(Standard Type)
- Used a RF the Microwave Sensor.
- The up-to-date sense which uses Doppler principle.
- Low cost & Low Power Consumption.
- Small and Flat Profile & pin type.
- Reliable Construction & High Sensitivity
- Operating Temperature Range : -20'C to +55'C
- Storage Temperature Range : -30'C to +70'C
- Detection Range : 15M ~ 20M(Max.)
제품소개
■ Specification
(Transmitter)
Frequency |
Frequency Setting Accuracy | Power Output (Min.) | Operating Voltage | Operating Current (CW) | Harmonic Emissions |
10.525GHz. |
3MHz | 10dBm EIRP | +5V +/-0.3V (Option:+3.3V) | 30mA~35mAtypical | -30dBm |
(Receiver)
Sensitivity (10dB S/N ratio) in 3Hz to 80Hz bandwidth | Noise in 3Hz to 80Hz bandwidth | Antenna Gain | E Plane 3dB Beam width | H Plane 3dB Beam width |
-85 dBm | 10μV | 8dBi | 40° | 80° |
(Module Characteristics)
Power/Temp. Coefficient (over operating temp. range) | Frequency/Temp. Coefficient (over operating temp. range) | Operating Temperature Range | Storage Temperature Range | Detection Range | Weight | Size(mm,+/-0.2) |
3dB | 6.5MHz | -20'C to+55'C | -30'Cto+70'C | 15M ~20M(Max.) | 6grams | 40.0 * 47.0 *8.3 |
