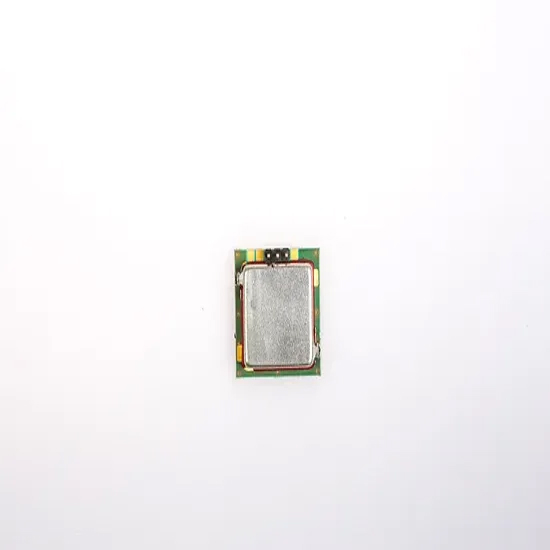

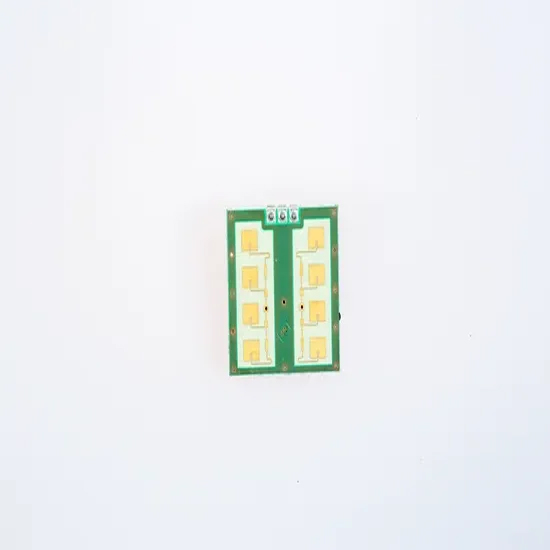

- Doppler radar-based motion detector
- Available in different frequency ranges
- Advanced PHEMT-oscillator with low current consumption
- Split transmit and receive path for maximum gain
- Mono (single channel) operation for motion detection
- Very small outline dimensions
■ Specification(Model No.:DNS-060)
Parameter |
Min. |
Typ. |
Max. |
Units. |
Remarks. |
|||
Transmit frequency |
24.050 |
24.125 |
24.250 |
GHz |
DNS-060 |
|||
Output power(EIRP) |
12 |
15 |
17 |
dBm |
Antenna Gain:8dBi |
|||
Temperature drift |
|
1 |
|
MHz/°C |
|
|||
Antenna pattern |
| 80 |
| ° | Horizental | |||
| 32 |
| ° | Vertical | ||||
IF output | 0 |
| 300 | mV |
| |||
Supply voltage | 4.75 | 5 | 5.25 | V |
| |||
Supply current |
| 30 | 40 | mA | Continuous | |||
Operating temp. | -20 |
| +60 | °C |
| |||
Detection range |
| 12 | 15 | m |
| |||
Weight |
| 6 |
| g |
| |||
Dimensions | 25 * 25 * 7 | mm | ||||||
■ Environmental Tests and Handling Precautions:
- This sensor module is sensitive to damage from ESD.
- Normal precautions as usually applied to CMOS devices are sufficient when handling the device. Touching the signal output pins has to be avoided at any time before soldering or plugging the device into a motherboard
- Applying multi-meters e.g. for resistance measurement between any of the connector pins may cause damage to the module
■ Applications
1) traffic / express highway watch and control.
2) security relation products (sensor and alarm set etc).
3) automobile rear collision warning.
4) automatic door activation.
5) sensor light.
6) sensors it applies in all products which operate.
