DNS-080

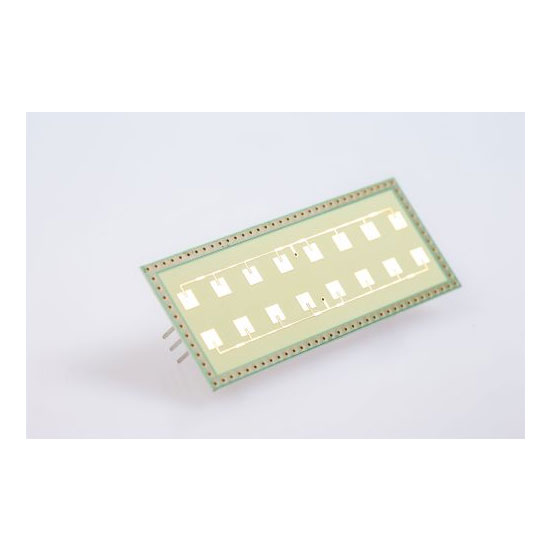

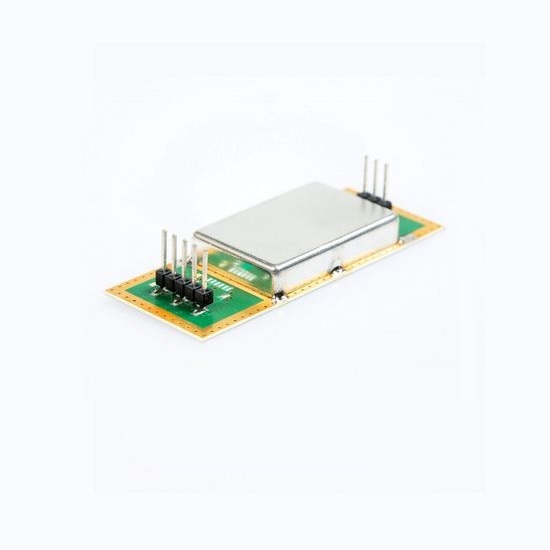

K-Band Microwave Motion Sensor Module
- K-Band Microwave Motion Sensor Module
- 24 GHz short range transceiver
- Narrow - wide asymmetrical field pattern
- Beam aperture 80°/12°
- High sensitive LNA receiver
- 250MHz wide sweep FM input
- I/Q IF outputs
- Optional IF amplifier (DNS-080:V2)
- Compact size: 66mm x 25mm x 6mm
제품소개
■ Specification(Model No.:DNS-080)
Parameter |
Min. |
Typ. |
Max. |
Units. |
Remarks. |
Transmit frequency |
24.000 |
24.125 |
24.250 |
GHz |
DNS-080 |
Output power |
16 |
18 |
20 |
dBm |
With LNA |
Temperaturedrift |
|
-1 |
|
MHz/°C |
|
Antenna pattern |
| 80 |
| ° | Horizontal |
| 12 |
| ° | Vertical | |
I/Q Balance |
|
|
|
|
|
80 | 90 | 100 |
| Phase | |
Side Lobe Suppression |
| -20 |
| dB | Horizontal |
| -18 |
| dB | Vertical | |
Antenna gain |
| 12.5 |
| dBi |
|
LNA GAIN |
| 10 |
| dB |
|
Supply voltage | 4.75 | 5 | 5.25 | V |
|
Supply current |
| 50 | 70 | mA | Continuous |
Operating temp. | -20 |
| +80 | °C |
|
DetectionRange |
| 25 |
| m | Person |
| 50 | 60 | m | Person | |
Dimension | 65 .0* 25.0 *7.0 | mm |
| ||
■ Applications
1) Indoor and outdoor lighting control applications
2) Traffic supervision and counting
3) Object speed measurementsystems
4) Ranging and distancedetection
5) Industrial sensors
