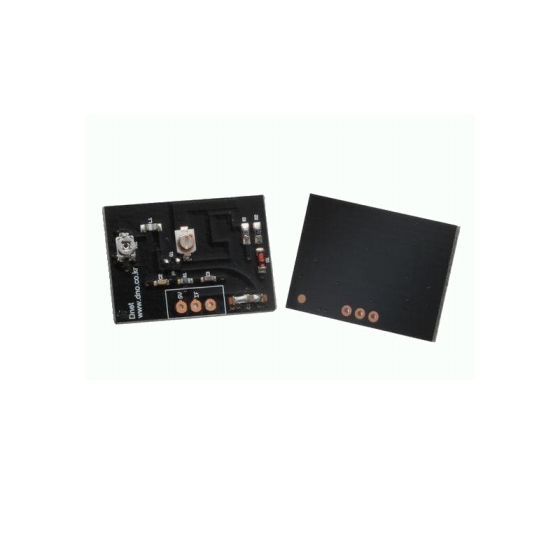

DNS-100
S-Band Microwave Motion Sensor Module
  • Used a RF the Microwave Sensor Module.
  • Appling the Doppler radar principle.
  • ISM Band * Small size(28mm * 20mm).
  • Microwave technology.
  • Low cost & Low Power Consumption.
제품소개

■ Model No.


 Classification

 Model No.

 Frequency

 Mode

 S-Band Microwave Motion Sensor Modules

 DNS-100

2.45GHz
(2.30~2.80GHz)

 Continuous





■ Specification


 CLASSIFICATION

 MODE

 APPLICATIONS

 CONTINUOUS

 ELECTRICAL CHARACTERISTICS

 1.security relation products (sensor and alarm set etc).

 2. automobile rear collision warning.

 3. automatic door activation.

 4. sensor light.

 5. sensors it applies in all products which operate


Interface




 Operating Voltage

 4.5 ~ 5.3VDC

 Operating Current

 5~10mA

 Center Frequency

 2.45GHz((2.30~2.80GHz)

 Frequency Stability

 5MHz max.(-30'C to +55'C)

 Output Power

 + 5dBm E.I.R.P. type

 Return Loss Sensitivity

 - 90dBc type

 Antenna Beamwidth(-3dB) : E-plane

 45 deg. nom.

 : H-plane

 70 deg. nom.

 Antenna Gain

 4~5dbi

 PULSE MODE OPERATION

 Pluse Width



 Separate Pluse Control Input



 ABSOLUTE MAXIMUM RATINGS

 DC Input Voltage

 5.3VDC

 Operating Current

 10mA

 Operating Temperature Range

 - 30 to + 50'C

 Storage Temperature Range

 - 40 to + 80'C

 Relative Humidity

 95% at 35'C

 Vibration

 G=10

 Shock

 G=20

 GENERAL CONTENTS

 Size

 28mm * 20mm

 Detection Range

 8m(standard)

 Radiated MW Energy

 30 micro Watt(at least)
