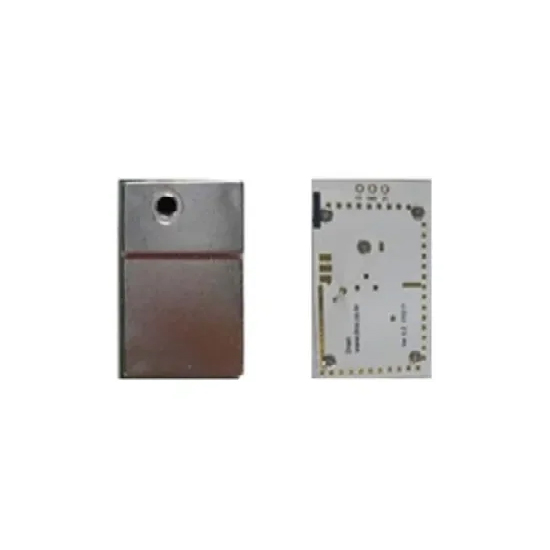

DNS-200S
C-Band Microwave Sensor Module
- C-Band Microwave Sensor Module DNS-200(S)
- Used a RF the Microwave Sensor.
- Appling the Doppler radar principle.
- CW Radar, ISM Band
- Small size.
- Used Pin Antenna & Amplifier Inclusion.
- Microwave technology.
- Low cost & Low Power Consumption.
- No Amplifier
제품소개
■ Specification
CLASSIFICATION |
MODE |
ELECTRICAL CHARACTERISTICS |
|
Operating Voltag |
4.7 ~ 5.3VDC |
Operating |
10~20mA |
Center Frequency | 5.8485GHz (5.847GHz ~5.850GHz) |
Output Power | < 10mW |
ABSOLUTE MAXIMUM RATING | |
DC InputVoltage | 5VDC(4.7 ~ 5.3VDC) |
Operating Temperature Range | - 30 to +50'C |
Storage TemperatureRange | - 40 to +80'C |
Relative Humidity | 95% at35'C |
GENERAL CONTENTS | |
Size | 38mm * 24mm * 8.3mm |
Detection Range & Angle (Wall) (Ceiling) | 15 ~ 15m(Max.) / 130’ ~150’ |
10 ~ 15m Dia(Max.) / 360’ | |
Radiated MW Energy | 10~30 micro Watt(atleast) |
